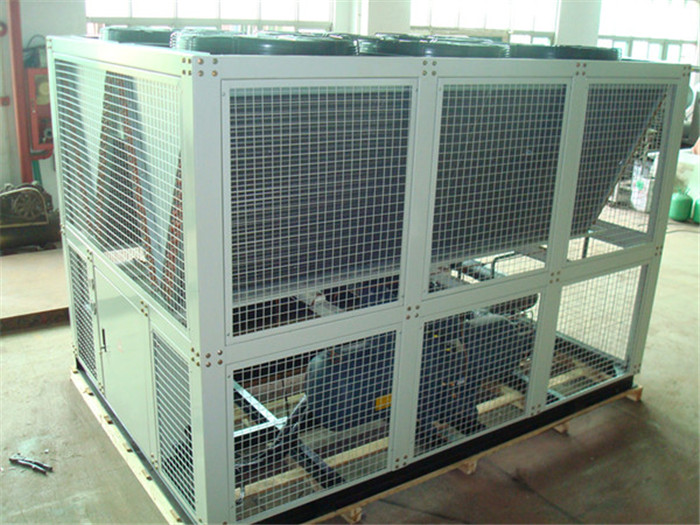

2016 New Design Industrial Air Cooeld Screw Online Water Chiller
Why choose us?
Shandong Mgreenbelt Machinery Co., Ltd. is a leading specialized
manufacturer of industrial process cooling equipment in Northern
China and was founded by Mr. Zhang Gaoyuan in 2003. Mgreenbelt is a
Shandong based corporation located in Dezhou, covering a total area
of 34,000 square meters.
We are engaged in manufacturing, exporting and supplying Water
Chillers, Cooling Towers, Heat Exchangers and Components. Our range
is appreciated by the clients based in various parts of China .
1. We are manufactures, we provide machine by ourselves
2. Different models with different cooling capacity to satisfy you
3. Professional technical consulants
4. Best Service, Best Quality, Best Price
Description of industrial water chiller:
1.High efficiency condensers: copper tube coils and aluminum fins
with low noise radial fans, cool the water in a short duration to
reduce the power consumption
2.Water tank type evaporator made of 304 stainless steel with
internal copper tube coils and external thermo-insulation layers
3.Shell and tube type evaporator also available

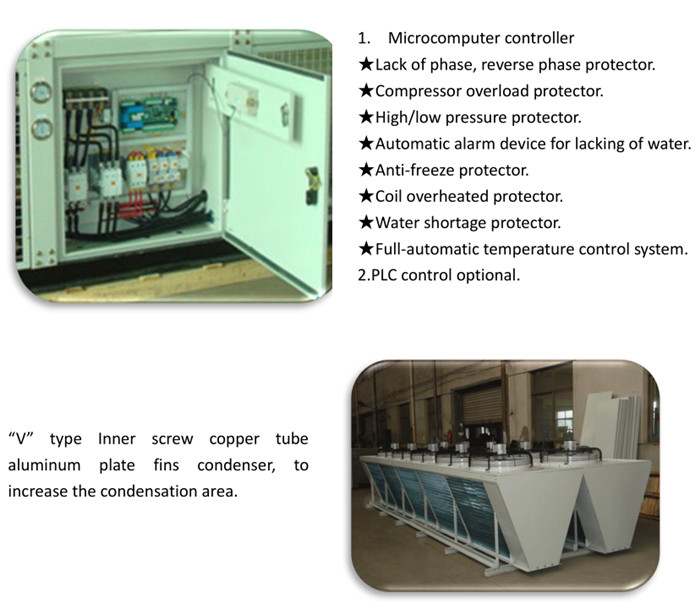

4.Precise microcomputer control system and LED touch screen to make
the technicians monitor the chiller machine operation condition
constantly
5.Especially suitable for these occasions where is short of water
or the water is not that clean or the chiller machine shall move
with the equipment accordingly
6.Caution: not that advisable to use air cooled water chiller where
the air ventilation of the workshop is not that good because such
conditions maybe influence the cooling effect
7.Faultless aftersales service: personnels from the aftersales
service department can quickly respond to users requirements upon
the receipt of the trouble notice
8.Economical, save the cost of auxiliary equipments: cooling tower
and water pump and related pipes
9.Easy to assemble, disassemble, install and maintenance
10.Box type design, elegant in appearance
11.R22/R134a/R407 refrigerant available
12.Short lead time, timely delivery, and one year quality warranty
Technical specification of industrial water chiller
| Model | MG-280CS |
| Power supply | 3PH-50HZ-380V |
| Cooling capacity | KW | 260 |
| Kcal/h | 887120 |
| Power consumption | KW | 92 |
| Running current | A | 139.8 |
| Chilled water flow | m³/h | 48.7 |
| Compressor | type | | Screw Semi-hermetic |
| quantity | | 1 |
| start method | | Y- delta |
| energy adjust range | % | 0,33,66,100 or 0,25,50,75,100 |
| motor power | KW | 82.4 |
| Refrigeration oil | type | | HBR-B01 |
| charge | L | 16 |
| Refrigerant | type | | R22 |
| Control mode | | Thermostatic Expansion Valve |
| charge | kg | 78 |
| Evaporator | type | | Shell and tube |
| water pipe diameter | inch | PT 4'' |
| Condensator | type | | Type V:inner screw copper tube aluminum plate-fin |
| Fan | type | | axial fan |
| air flow | m³/h | 115200 |
| power(W)×quantity | 1.2×8 |
| Safety device | compressor overload Protector,set overload Protector,High/Low
Pressure Switch,Anti-frost Protector,Anti-phase&lack-phase
Protector,flow protector |
Package of industrial water chiller
1). Fumigation-free wooden case for each water chiller machine.
2). Chiller machine will send to Qingdao loading port if clients
don't have any special requirements.
Payment terms:
T/T: 50% Down payment, the balance before shipment, or you also can
show us if any special required.
L/C,D/P,DDU and etc.
Contact preson:Grace Zhang
Cell:0086 18615626360(calling,whatspp,viber,weichat)
Email:cnmgchiller@gmail.com
Skype:mb.gracezhang
Looking forward long and good cooperation from all over the world!
MGREENBELT will give our agent price and good service.
