Smaller Air Cooled Scroll Glycol Chiller For Dairy Industry Use

Ask Lasest Price
Brand Name :	MGREENBELT
Certification :	CE
Model Number :	MG-20CL
Price :	FOB Qingdao $3000~$8000
Delivery Time :	Within 20 working days
Payment Terms :	T/T,L/C,D/P
Supply Ability :	300 Sets/Months

Add to Cart

Product Details
Company Profile

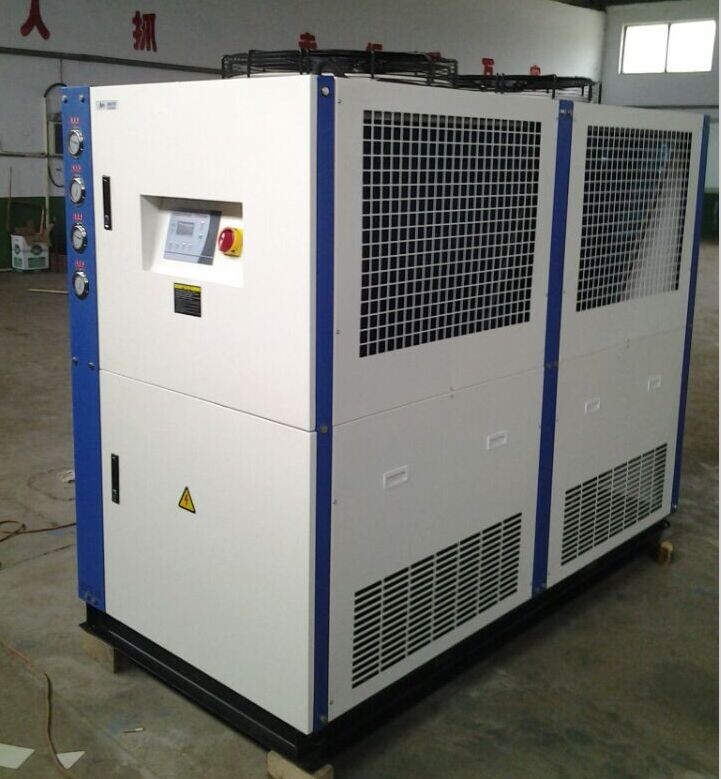

Smaller Air Cooled Scroll Glycol Chiller For Dairy Industry Use

Smaller Air Cooled Scroll Glycol Chiller For Dairy Industry Use

Description of Dairy Glycol Chiller

Scroll type compressor
Multi compressors to work jointly or independent
Supply at least -5℃ cold water to satisfy customer working need.
Easy to maintain and convenient to move

Specification of Dairy glycol chiller

Model	Unit	MG-20CL
Nominal cooling capacity	kcal/h 50HZ/60HZ	32336/38803
Nominal cooling capacity	KW 50HZ/60HZ	37.6/45.1
Set temp. range	-5ºC
Input power	KW	20.15
Power supply	3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ)
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll
Compressor	Power(kw)	8.5*2
Condenser	Type	Finned copper tube+low noise outer rotor fan
Condenser	Cooling air flow(m3/h)	20000
Evaporator	type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	6.45
	Volume(L)	350
	Inlet and outlet pipe diameter(inch)	DN40
Pump	Power(kw)	1.5
Pump	Lift(m)	20
Dimension	Length(mm)	2000
	Wide(mm)	1000
	High(mm)	1700
Weight	kg	850
Safety protection	Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing
Safety protection

Main parts of air cooled water chiller

Our industrial using air cooled water chiller adopt famous brand components to ensure the high quality and good performance for your usage. Popular PLC control system which show out working condition of each parts, and touch screen operate,to be controlled easily and powerful. Main four parts below:

Compressor brand	Copeland,Sanyo, Danfoss	Temperature Controller	PUNP, PLC
Electrical components	Schneider	Expansion valve	EMERSON
Water pump	CNP/MINAMOTO	Dry filter	DANFOSS
Evaporator	MGreenbelt	Condenser	MGreenbelt

Details of dairy glycol chiller machine:
