Large Cooling Capacity Water Cooled Screw Water Cooling Chiller
From Factory
Feature:
1 The compressor of world famous brand is employed, with high
efficiency, low noise level. less wearing and long operation time.
2 The unit is of high performance as they are made of the
condensers and evaporators of grooved copper pipes, and high
quality components,by specialized process.
3 The unit is of easy to operate, and friendly interfaced, as they
employ leading brand of PLC, 64K color touch screen and other
control elements.
4 The energy saving for Multi-capacity regulation, resulation in
cost cut down for operation and maintenance.
Control system:
1 Imaged system operation chart, showing the temperatures of water
in and out,the energy level of compressor run,on/off button, run
time, alarm etc. And the remote turn on/off function is available.
PC remote control is optional.
2 Notice for maintenance is indicated accoring to the accumulated
run time of the compressir. It is convenient to the maintenance
man.
3 The control system woll automatically balance the run time for
the each compressor unit.
Safety protections:
Discharge check valve, phase lack protection, direction protection,
oil heater, overheat protection inside the motor of the compressor,
high and low protection, freezing protection, water follow
protector, high temperature of chilled water protector.
Technical Specification:
| Model | MG-520WD |
| Nominal cooling capacity | kcal/h | 1376000 |
| kw | 1600 |
| Input power | kw | 333 |
| Chilled fluid flow | M3/h | 291 |
| Cooling water flow | M3/h | 353 |
| Power supply | 3PH-380V-50HZ |
| Refrigeration oil | Type | | SUNISO 4GS |
| Charge | L | 28*2 |
| Refrigerant | Type | | R22/R134a/407c |
| Charge | Kg | 130*2 |
| Type of control | | Thermostatic expansion valve |
| Compressor | Type | | Semi-hermetic screw |
| Quantity | | 2 sets |
| start-up mode | | Y-delta |
| power | Kw | 180*2 |
| Capacity control | % | 0~100( 8 level Capacity control) |
| Evaporator | type | | Shell and tube |
| Inlet and outlet pipe diameter | inch | PT8" |
| Condenser | Type | | Shell and tube |
| Inlet and outlet pipe diameter | inch | PT8"*2 |
| Dimension | Length | mm | 4350 |
| Width | mm | 1420 |
| Height | mm | 2080 |
| Net weight | Kg | 6280 |

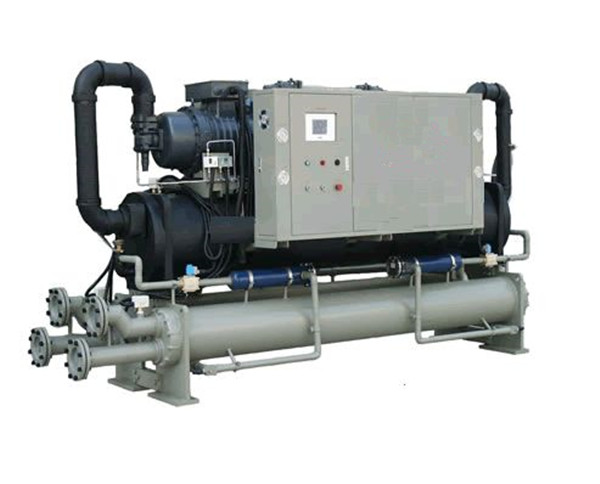

Chiller From Factory
Chiller components

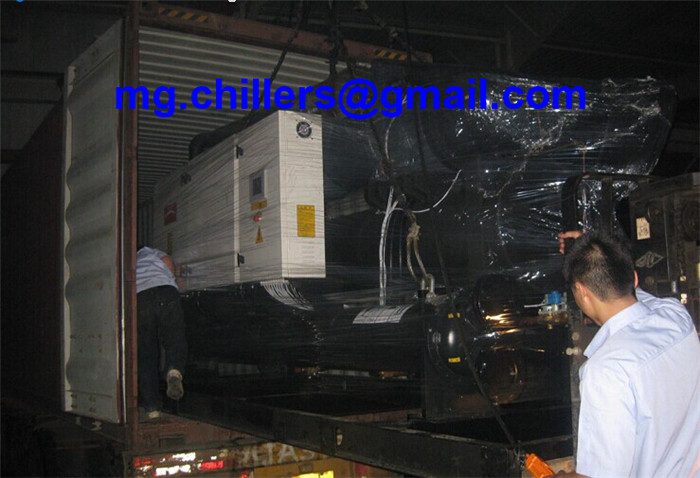

Chiller Delivery
