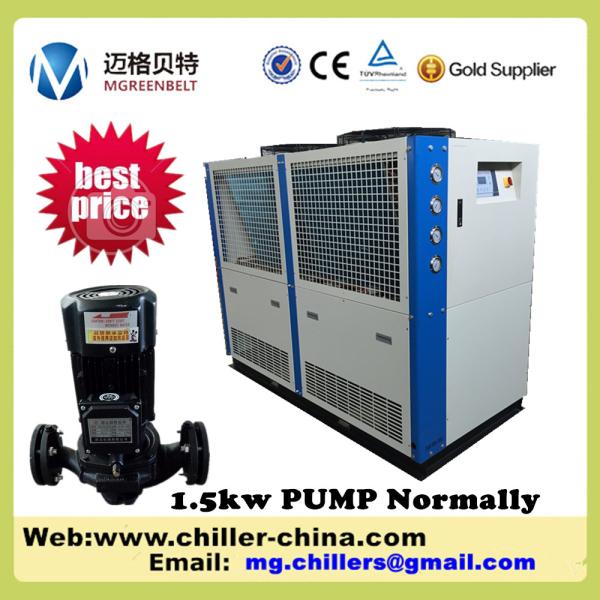

Industrial Plastic Auxiliary Equipment Air Cooled Water Chiller For
Injection Machine
Description of air to water cooling system
- Scroll type compressor
- Single or multi compressors to work jointly or independent
- Supply 5-35 degree Celsius cold water chiller ( low temperature
glycol chiller is another series)
- Easy to maintain and convenient to move
Tchnical Specification
| Model | Unit | MG-10C(D) |
| Nominal cooling capacity | kcal/h 50HZ/60HZ | 24510 29412 |
| KW 50HZ/60HZ | 28.5 34.2 |
| Set temp. range | 3ºC~50ºC |
| Input power | KW | 1083 |
| Power supply | 3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ) |
| Refrigerant | Type | R22/R134a/407c |
| Type of control | Thermostatic expansion valve |
| Compressor | Type | Hermetic scroll |
| Power(kw) | 4.54*2 |
| Condenser | Type | Finned copper tube+low noise outer rotor fan |
| Cooling air flow(m3/h) | 10000 |
| Evaporator | type | Tank with coil/shell and tube |
| Chilled fluid flow(m3/h) | 4.89 |
| Volume(L) | 200 |
| Inlet and outlet pipe diameter(inch) | 2" |
| Pump | Power(kw) | 0.75 |
| Lift(m) | 20 |
| Dimension | Length(mm) | 1560 |
| Wide(mm) | 850 |
| High(mm) | 1500 |
| Weight | kg | 450 |
| Safety protection | Compressor over temperature,over current,high and low
pressure,Phase sequence,phase-missing |
1) The specification above is for R22 refrigerant, please contact
us if you need R407c,R134a ,etc.
2) The standard power is 3ph-380v-50hz, optional 220V,
380V-415V,440V,460V,480V,600V,50Hz/60Hz, 3Phase
Main parts of air cooled water chiller
Our industrial using air cooled water chiller adopt famous brand
components to ensure the high quality and good performance for your
usage. Popular PLC control system which show out working condition
of each parts, and touch screen operate,to be controlled easily and
powerful. Main four parts below:
| Compressor brand | Copeland,Sanyo, Danfoss | Temperature Controller | PUNP, PLC |
| Electrical components | Schneider | Expansion valve | EMERSON |
| Water pump | CNP/MINAMOTO | Dry filter | DANFOSS |
| Evaporator | MGreenbelt | Condenser | MGreenbelt |
Service for plastic chiller
Before order:Our team will supply you the water chiller solution, include
working, installation, shipping and etc, all will based on your
working condition, clients just inform us what you want.
After order:Engineer team Tel:0086-531-80960819, and also can email us, any
support need we will response within 24 hours.
If any quality problem the news parts will be sent within 3 days,
shiping charge by us.
Payment term:50% Down payment, the balance before shipment, or you also can show
us if any special required.
Package of water chiller for plastic
Package of water chiller: Standard export wooden case
Shipping by LCL, if your quantity is large we will arrange FCL.
