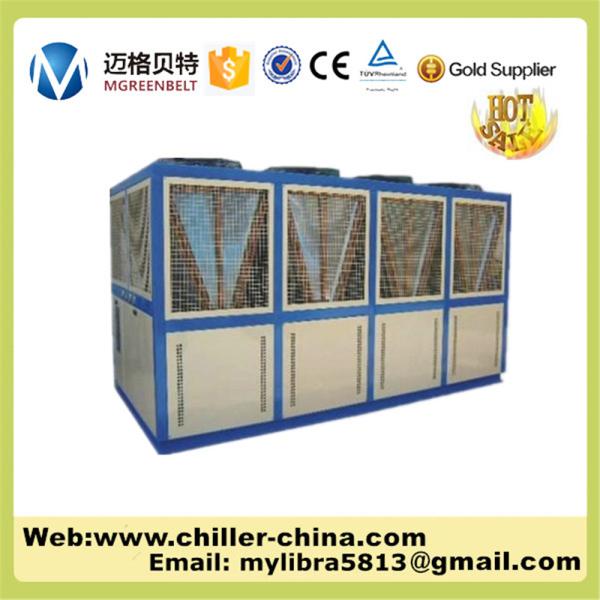

Industrial Chiller Series/ Screw Water Chiller/Air Cooled Water
Chiller Manufacuturer
1.Main data
Cooling capacity: 50Ton
Input power: 198kw
Compressor:Bitzer(60kw)
Chilled pump:38m3/h
Application industry:Plastic injection, Plastic molding,Chemical
and etc.
2.Parameter
Model | Unit | MG-80AS |
Nominal cooling capacity | kcal/h | 171672 |
KW | 198 |
Input power | KW | 72 |
Set temp. range | 3ºC~35ºC |
Power supply | 3PH-380V-50HZ |
Refrigerant | Type | R22/R134a/407c |
Type of control | Thermostatic expansion valve |
Compressor | Type | Semi Hermetic screw |
Power(kw) | 90 |
Condenser | Type | Finned copper tube+low noise outer rotor fan |
Cooling air flow(m3/h) | 80000 |
Evaporator | Type | Tank with coil/shell and tube |
Chilled fluid flow(m3/h) | 38 |
Inlet and outlet pipe diameter | DN800 |
Dimension | Length(mm) | 2500 |
Wide(mm) | 2100 |
High(mm) | 2400 |
Weight | kg | 2310 |
Safety protection | Compressor over temperature, over current, high and low pressure,
Phase sequence, phase-missing |
Note:
Design Cooling Condition: Chilled Water In/Out 12°C/7°C;Ambient
35°C
Models: MG-AS Cooling Capacity: 109KW-566KW
-Semi-Hermetic Screw Compressors
-Tube in Tube Type Heat Exchanger for Evaporator
-V Type Fin Air Cooled Condenser
-Water Pump and Water Tank are an optional to built in the chiller
-Chilled Water Inlet/Outlet Temperature 12°C/7°C,Ambient 35°C
-Mostly Used for Central Air Conditioning Cooling
3.Components
No | Parts | Number | Brand | Qty | Warranty (Year) |
1 | Semi-hermetic screw compressor | ----- | Hanbell(Taiwan) | 1 | 1 |
2 | Expansion valve | T series/POS | Danfoss(Denmark) | 1 | 1 |
3 | Filter | A Series | ALCO(USA) | 1 | 1 |
4 | Pressure gage | DN63 Series | Fuco(Italy) | 2 | 1 |
5 | Shell and tube condenser(Copper Kobe, Japan) | MG-120W | MGREENBELT | 1 | 1 |
6 | Shell and tube Evaporator(Copper Kobe, Japan) | MG-120D | MGREENBELT | 1 | 1 |
7 | Pressure controller | 606XMM | Saginomiya | 1 | 1 |
8 | Controller | Microcomputer control | Punp(USA) | 1 | 1 |
9 | A.C.contactor | 220V | LG | 1 | 1 |
10 | Electrical accessory | — — | Schneider or Omron
| 1 | 1 |
11 | Reservoir | — — | — — | 1 | 1 |
12 | Refrigerant | R407C | Dupont | 1 | 3 |
4.Details of chiller
Service:
Before order: Our team will supply you the water chiller solution, include
working, installation, shipping and etc, all will based on your
working condition, clients just inform us what you want.
After order:Engineer team Tel:0086-531-80960819, and also can email us, any
support need we will response within 24 hours.
If any quality problem the news parts will be sent within 3 days,
shiping charge by us.
Payment term:
T/T: 50% Down payment, the balance before shipment, or you also can
show us if any special required.
L/C,D/P,DDU and etc.
Contact preson:Grace Zhang Cell:008618615626360(calling,whatspp,viber,weichat) Email:cnmgchiller@gmail.com Skype:mb.gracezhang |
Looking forward long and good cooperation from all over the world!
MGREENBELT will give you the 5% discount and good service.
