Hot Sell Large Industrial Water Cooled Water Chiller Price

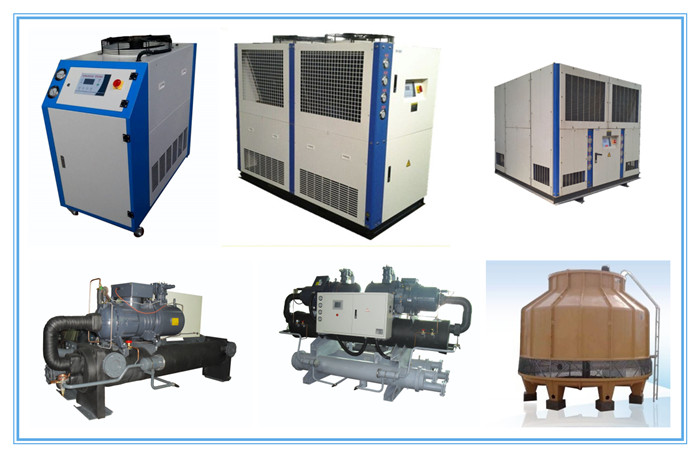

Mgreenbelt is a manufacture,solution provide ofWater Chiller China, water cooled chiller, industrial chiller,air cooled chiller,
glycol chiller, cooling tower and etc, we specialized in this line
12 years, have export to the world widely.
1.Product description
1).Water Cooled Water Chiller In Industies:
MG water cooled industrial chillers are designed for water
supplying temperature between 5℃ to 35℃.
MG adopts only international brand components which are strictly
tested and selected by our technical team.
The chiller units are designed with Siemens PLC controller to
ensure control accuracy. The interface is displayed in English.
Complete safety devices are equipped aiming at both the chiller
unit and your equipments, including alarm for high water
temperature, water supply shortage,motor overload,unit
running,pressure ,etc.
2).Quick details:
1.Model:MG-160WD
2.Cooling caapcity: 520kw
3.Cooling tower: 127m3/h
4.Power supply: Customize based on clients workng requirements
5.PLC, Modbus R485 optional
6.Refrigerant: R22,R407c,R134a as usual
3).Technical Specification:
| Model | MG-160WD |
| Nominal cooling capacity | kcal/h | 447200 |
| kw | 520 |
| Input power | kw | 102.5 |
| Chilled fluid flow | M3/h | 90 |
| Cooling water flow | M3/h | 06 |
| Power supply | 3PH-380V-50HZ |
| Refrigeration oil | Type | | SUNISO 4GS |
| Charge | L | 12*2 |
| Refrigerant | Type | | R22/R134a/407c |
| Charge | Kg | 40*2 |
| Type of control | | Thermostatic expansion valve |
| Compressor | Type | | Semi-hermetic screw |
| Quantity | | 2 sets |
| start-up mode | | Y-delta |
| power | Kw | 56*2 |
| Capacity control | % | 0~100( 8 level Capacity control) |
| Evaporator | type | | Shell and tube |
| Inlet and outlet pipe diameter | inch | PT6" |
| Condenser | Type | | Shell and tube |
| Inlet and outlet pipe diameter | inch | PT4"*2 |
| Dimension | Length | mm | 3200 |
| Width | mm | 1200 |
| Height | mm | 1760 |
| Net weight | Kg | 3050 |
4).Details
5.Customer Site
6.Application of Water Chiller In Industies:
MGreenbelt water cooling chiller are applied in variety industries
like:
Plastic injection and moulding industry
Food and beverage industry
Chemical and Pharmaceutical industry
Electroplating industry,etc.
Which can control the chilled temperature precisely and greatly
improve the production.
8.Package of Water Chiller In Industies:
1.Standard wooden case of smaller water cooling chiller which not
enough for 20" container.
2.Pakage with container directly for the larger machine which
enough more than 10CBM.
9.Service
Contact preson:Grace Zhang Cell:0086018615626360(calling,whatspp,viber,weichat) Email:mg.chillers at gmail.com Skype:mb.gracezhang |
Looking forward long and good cooperation from all over the world!
MGREENBELT will give you the 5% discount and good service.
