Best Price 5 Ton For Plastic Industry Air Cooled Water Chiller
1.Working Application Of Plastic Water Chiller
- Plastic injection,blowing,molding,extruding machine cooling, widely
use our water chiller model is MG-5C,MG-8C(D),MG-15C(D) and etc, if
the equipment is large, then we suggest screw type water chiller
sugges as 50Ton, 100Ton and etc.
- Food,beverage,beer and etc industry, we widely suggest glycol type
water chller, which outlet temperature is 0degC, -5deg C and etc.
- Plating,chemical,pharmacy,drinking water and etc industry.
2.Feature Of Water Chiller For Plastic Injection Machinery
1).Punp Brand Microcomputer control system as normal.
2).Siemens PLC control system customize.
- Lack of phase, reverse phase protector.
- Compressor overload protector.
- High/low pressure protector.
- Automatic alarm device for lacking of water.
- Anti-freeze protector.
- Coil overheated protector.
- Water shortage protector.
- Full-automatic temperature control system.
3).World-Class Compressor
- Chiller with US,Japan or Europ Compressor
- Provide you Multiple-Choices
- Employs the most advanced Europe/US made compressor. Model type:
single, double unit, or multiple unit combination.
4).Stainless steel evaporator
- The high efficiency shell-shape evaporator and condenser provide
superior heat conduction.It upgrades cooling speed greatly and
reduces power consumption up to 25%.
3.Technical specification
| Model | Unit | MG-8C(D) |
| Nominal cooling capacity | kcal/h 50HZ/60HZ | 17458 20950 |
| KW 50HZ/60HZ | 20.3 24.36 |
| Set temp. range | 3ºC~50ºC |
| Input power | KW | 8.52 |
| Power supply | 3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ) |
| Refrigerant | Type | R22/R134a/407c |
| Type of control | Thermostatic expansion valve |
| Compressor | Type | Hermetic scroll |
| Power(kw) | 3.6*2 |
| Condenser | Type | Finned copper tube+low noise outer rotor fan |
| Cooling air flow(m3/h) | 8000 |
| Evaporator | type | Tank with coil/shell and tube |
| Chilled fluid flow(m3/h) | 3.48 |
| Volume(L) | 120 |
| Inlet and outlet pipe diameter(inch) | 2" |
| Pump | Power(kw) | 0.75 |
| Lift(m) | 20 |
| Dimension | Length(mm) | 1400 |
| Wide(mm) | 800 |
| High(mm) | 1400 |
| Weight | kg | 310 |
| Safety protection | Compressor over temperature,over current,high and low
pressure,Phase sequence,phase-missing |
Remarks:
1.The chilled water temperature of such chillers is +5~35 deg C;
2.All the chillers contain ecological refrigerant r407/r134a when
shipped; 3. These chillers listed on the sheets are air cooled
type, and water cooled type of the same are
available;
4. All the parts, whole machine and the tube dimensions are up to
standards;
5. Nonstandard parts, machines and tube connections can be
customed; 6. Installation, commissioning and maintenance shall be
performed by qualified service technicians.

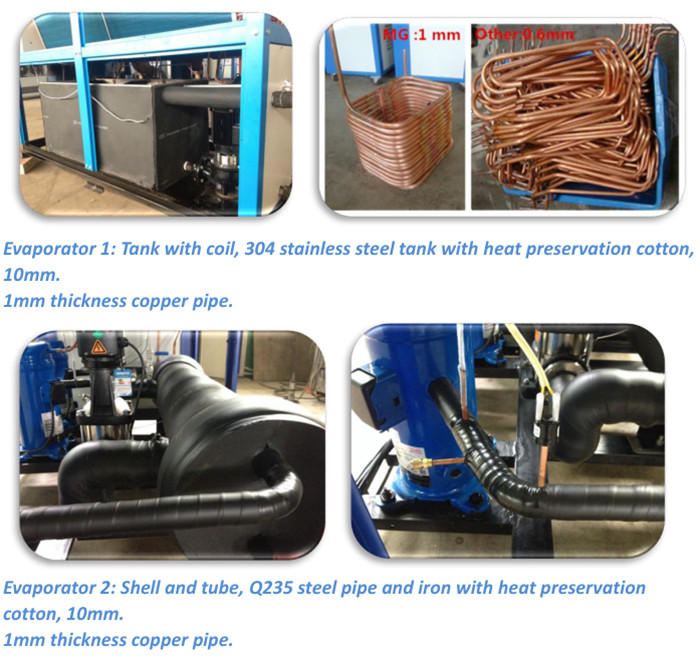

Plastic water chiller details
4.Plastic samples which our chiller working for
5.About us
MGREENBELT is a leading specialized manufacturer of industrial
process cooling equipment in Northern China and was founded by Mr.
Zhang Gao Yuan in 2003. MGREENBELT is a Shandong based corporation
located in Jinan, covering a total area of 34,000 square meters.
1). Professional manufacturer, ISO9001-2008
2). More than 612years’ experiences of manufacturing.
3).Customized solutions and products.
4).OEM/Small order accepted.
5).Lead time 15 days.
6).Tooling in house.
7).High quality control.
8).Competitive price.
6.Service for plastic chiller
Before order:Our team will supply you the water chiller solution, include
working, installation, shipping and etc, all will based on your
working condition, clients just inform us what you want.
After order:Engineer team Tel:0086-531-80960819, and also can email us, any
support need we will response within 24 hours.
If any quality problem the news parts will be sent within 3 days,
shiping charge by us.
Payment term:50% Down payment, the balance before shipment, or you also can show
us if any special required.
7.Package of water chiller for plastic
Package of water chiller: Standard export wooden case
Shipping by LCL, if your quantity is large we will arrange FCL.
If any further questions or inquiry please contact with us:
Ms Grace Zhang
Ph:+8618615626360
Skype:mb.gracezhang
Email:mg.chillers at gmail.com
