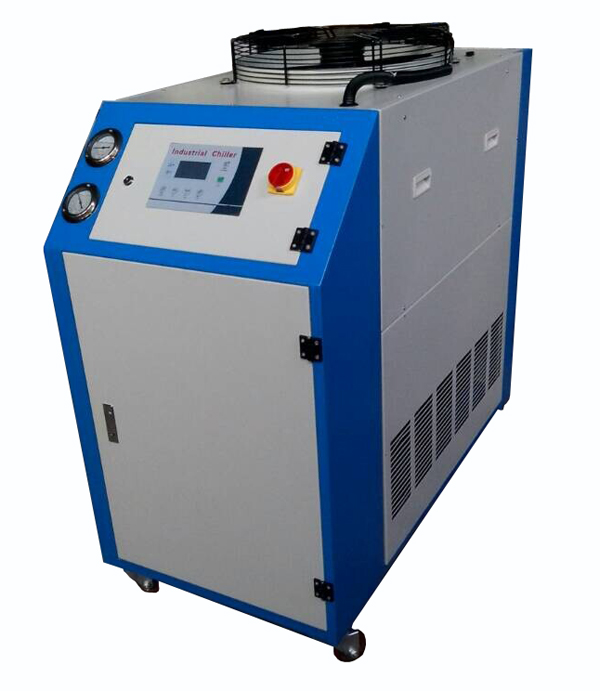

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    Ask Lasest Price
    Brand Name : MGREENBELT
    Model Number : MG-3C
    Certification : CE
    Price : FOB Qingdao $700~$1000
    Delivery Time : Within 7 working days
    Payment Terms : T/T,D/A,D/P
    Supply Ability : 300 Sets/Months
    • Product Details
    • Company Profile

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    1.Specification

    Mini Air cooled package chiller

    Cooling capacity:8.5kw

    Power supply:3Phase-220V/380V415V/440V/460-50HZ-60HZ

    Refrigerantion: R407c,R22

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    2.Data

    Model

    Unit

    MG-3C

    Nominal cooling capacity

    kcal/h

    7310

    KW

    8.5

    Input power

    KW

    3.53

    Set temp. range

    3ºC~35ºC

    Power supply

    1PH-220V-50HZ

    Refrigerant

    Type

    R22/R407

    Type of control

    Capillary

    Compressor

    Type

    Hermetic scroll

    Power(kw)

    2.95

    Condenser

    Type

    Finned copper tube+low noise outer rotor fan

    Cooling air flow(m3/h)

    3000

    Evaporator

    Type

    Tank with coil/shell and tube

    Chilled fluid flow(m3/h)

    1.46

    Volume(L)

    20

    Inlet and outlet pipe diameter

    1"

    Pump

    Power(kw)

    0.37

    Lift(m)

    20

    Dimension

    Length(mm)

    1200

    Wide(mm)

    600

    High(mm)

    1100

    Weight

    kg

    150

    Safety protection

    Compressor over temperature, over current, high and low pressure, Phase sequence, phase-missing

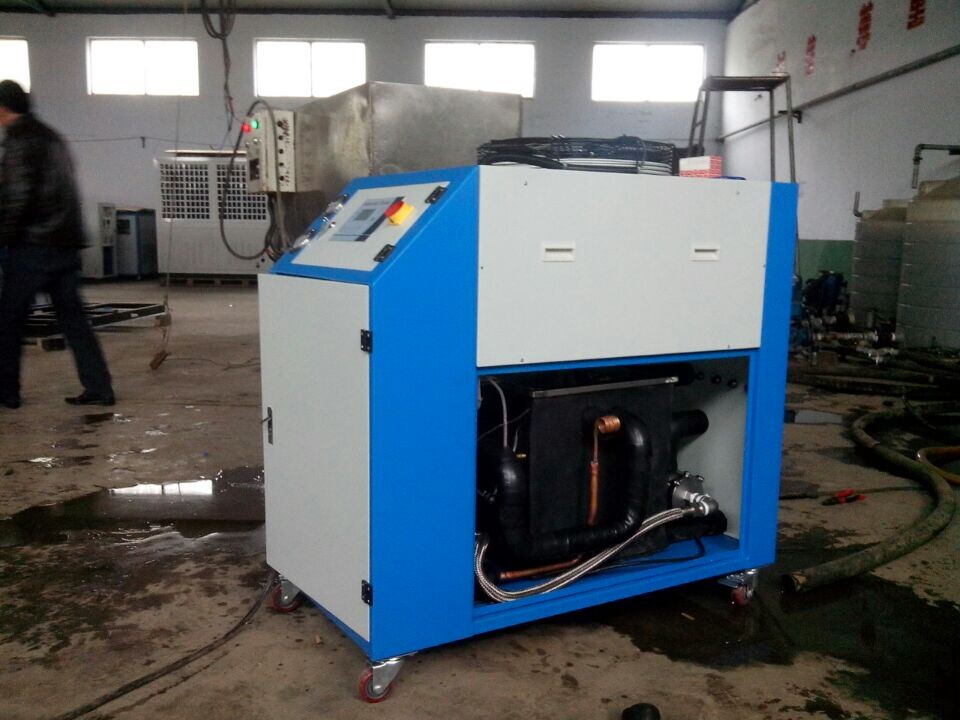

    3.Small water chiller details below:

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    4.Package-Standard export wooden case

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    5.Certificate of small water chiller

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    6.Welcome to our factory

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    7.Dear customer,

    If this model is not suitable for your project? As a professional water chiller manufacture and solution provider, we can provide different chiller series based on your requirements, any customize and OEM accept, please check our home.

    Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

    If any further questions or inquiry please contact with us:

    Ms Grace Zhang

    Ph:+8618615626360

    Skype:mb.gracezhang

    Email:mg.chillers at gmail.com
