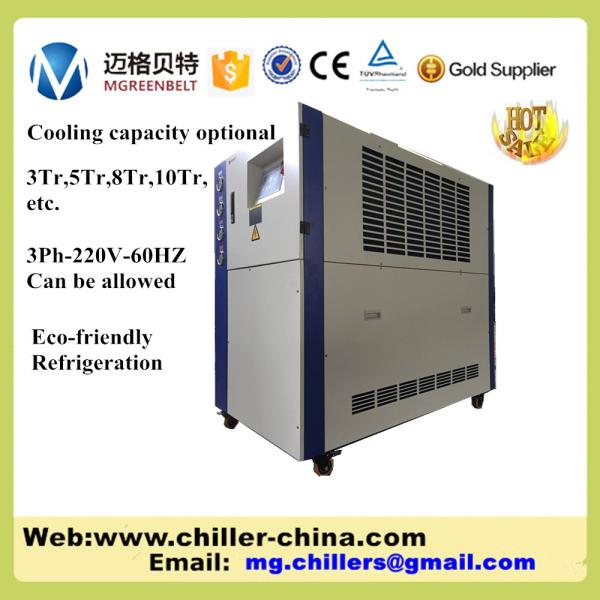

10Tr Low Temperature Glycol Chiller For Brewery
-5deg C glycol water chiller for brewery
Internal compressor brand is USA Copeland.
Copland vortex compressor, more durable, refrigeration effect is
more stable
Medium: Environmental protection refrigerants R22,R407c,R134a,
R404A..
Using the latest evaporator condenser integrated, import
compressor.
Advantage:
Adopt plate heat exchanger cooling technology, cooling effect
faster than copper coil type 40%. Reduce power consumption more
than by 20%.
Parameter data
| Model | MG-3CL | MG-4CL | MG-5CL | MG-8CL | MG-10CL | MG-12CL | MG-15CL | MG-20CL | MG-25CL | MG-30CL |
|
| Nominal cooling capacity | 50HZ | Btu/h | 19039 | 20915 | 30196 | 45379 | 60563 | 68751 | 76121 | 121126 | 137503 | 152243 |
| KW | 5.58 | 6.13 | 8.85 | 13.3 | 17.75 | 20.15 | 22.31 | 35.5 | 40.3 | 44.62 |
|
| Kcal/h | 4798 | 5272 | 7611 | 11438 | 15265 | 17329 | 19186 | 30530 | 34658 | 38373 |
| Power supply | | 380V/3PHASE/50HZ |
| Compressor power | KW | 2.25 | 2.58 | 3.69 | 5.6 | 7.2 | 8.08 | 9.06 | 14.4 | 16.16 | 18.12 |
| Type of control | | Capillary | Thermostatic expansion valve |
| Refrigerant | | R22,R407c,R410a,R134a |
| Condenser | Type | | Finned copper tube with low noise axial fan |
| Evaporator | Type | | Shell and tube or Tank with coil |
| Volume | L | 50 | 70 | 70 | 90 | 120 | 200 | 270 | 350 | 350 | 420 |
| Chilled water flow | M3/h | 0.95 | 1.05 | 1.51 | 2.27 | 3 | 3.45 | 3.82 | 6 | 6.9 | 7.6 |
| Pipe diameter | DN | 25 | 25 | 25 | 25 | 40 | 40 | 50 | 50 | 65 | 65 |
| Water pump | KW | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 2 | 2 | 3 | 3 |
| Machine size | L(mm) | 930 | 1140 | 1140 | 1310 | 1650 | 1650 | 1800 | 2000 | 2000 | 2200 |
| W(mm) | 520 | 560 | 560 | 720 | 750 | 750 | 990 | 1130 | 1130 | 1130 |
| H(mm) | 970 | 1040 | 1040 | 1270 | 1340 | 1340 | 1690 | 1720 | 1925 | 2025 |
| Net weight | kg | 120 | 150 | 150 | 250 | 320 | 350 | 680 | 720 | 1000 | 1200 |
Remarks:
1). Different original compressor for options: Sanyo, Copeland,
Danfoss
2). Tailor made power supply:
3phase,208-240v,380-415v,440v-460v,50hz or 60hz
3). Popular refrigerants allowed in your country,
R407c,R410a,R134a,R404a

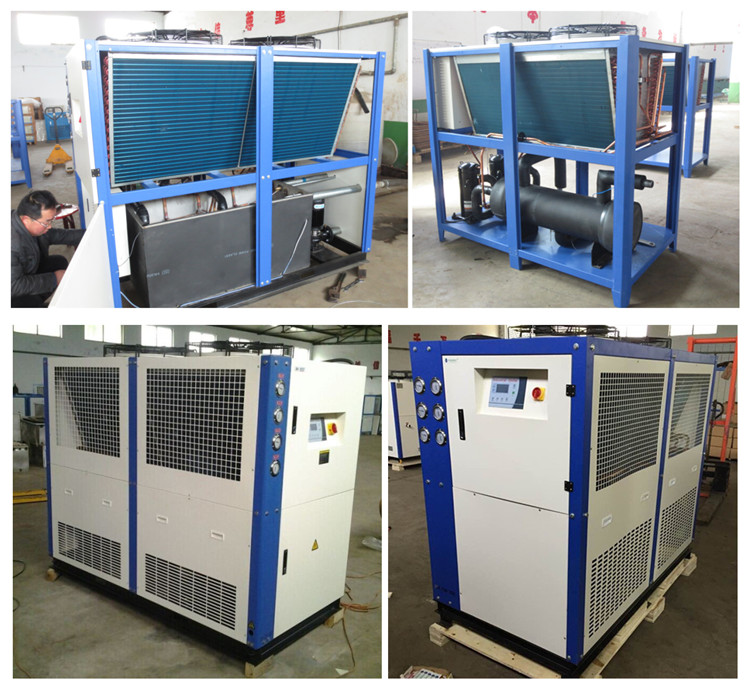

Components
Name | Brand |
Compressor | COPELAND/SANYO |
Electric components | SCHNEIDER |
Pump | MINAMOTO |
Evaporator | SHETA |
Condenser | SHETA |
Pressure control table | YOHA |
Oil type pressure gauge | HONGSEN |
Temperature controller | PUNP |
Expansion valve | EMERSON/ALCO |
Dry filter | EMERSON/ALCO |
Fan coil | MAER |
