CE Certificate air cooled screw industrial chiller with factory
price
Features of the chiller:
1.Adopt the world famous semi-hermetic screw compressor, low noise,
and super cooling.
2.Adopt high efficiency evaporator with seamless welded inside
screw heat exchange tubes.
3.Adopt the top row of suction type finned radiator, low noise fan
motor, strong air cooling and high efficiency heat exchanger.
4.Adopt the metal antirust type machine box which can suitable for
waterproof which can work in outdoor , to avoid the air cooled
chiller unit ventilated limited and lead to the high pressure
indoor.
5.Adopt the most advanced industrial third generation 5 to 6 teeth
asymmetrical design of double screw compressor.
6.Adopt micro-computer controller, display the temperature,
protect, fault code and etc to the control panel, easy operate.
Air Cooled Type Condenser:
Mgreenbelt chiller condenser adopt the high efficiency hydrophilic
aluminum foll finned type;
Adopt " V" type design, to increase the heat exchange, high
efficiency to make the own cooling;
Adopt the high power motor from MaEr brand.
Sealed Type Evaporator:
Mgreenbelt chiller evaporator adopt the shell and tube type, this
is a sealed type system which can make the higher efficiency heat
exchanger.
Application Industry Of the Cihller:
Air cooled screw chiller widely used in plastic injection,
extrusion, plating, mold, hydraulic, chemical, leather, printing,
profiles of oxidation, reaction kettle, chemical fiber, vacuum
coating, paper making, textile, central air conditioning
refrigeration and various aspects of water centralized water
supply, especially suitable for the inconvenience for water and the
water pipe ground.
Air Cooled Screw Series Parameters:
Model | Unit | MG-60CS |
Nominal cooling capacity | kw | 152 |
kcal/h | 130720 |
Input power | KW | 55 |
Power supply | | 380V,50Hz, 3Phase |
Compressor | Power(KW) | 52 |
Fan Air Flow | m3/h | 60000 |
Pump | Power(KW) | 3 |
Lift(m) | 20 |
Condenser | Type | Fine copper tube with air fan |
Evaporator | Inlet and outlet pipe diameter (mm) | DN80 |
Chilled water flow (m3/h) | 26 |
Detailed Picture Of The Air Cooled Screw Chiller:
1.The whole system working diagram

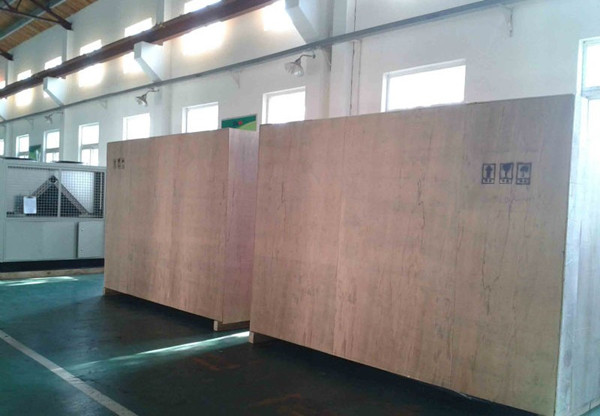

Package and Shipping Of the air cooled screw chiller:
We will use the bubble glue at first, then the shockproof cotton,
then the plastic film;
To protect the machine. Then add the wooden packing;
The wood packing is the woodiness plywood + the solid wood.
Top 1 after sales service in this industry:
1.Free repair and free parts supply within 14 months of guarantee
on the condition of operate the machine in the right way.
2.We provide detail machine technical specification, electric
diagram, installation book, operating manual, drawings
3.We can provide engineers to customer's factory to help
installation and training workers if customer required.
4.We offer OEM and Customersize based on clients market need.
FAQ:
1. Payment Terms:
T/T - 30% deposit before production,70% balance before delivery, or
other terms
2. Delivery Detail:
About 15 workdays after payments.
3.Pacage Terms:
International Standard Wooden Case for Export
Pls kindly offer the following information:
1.Cooling capacity
2.Inlet /outlet water temperature
3.Chiller water flow rate
4.Retrigreant
5.Voltage/Frquency
