20HP China Factory Price CE Certificated Water Chiller For
Hydroponics
Water chiller is to provide a Water Chiller For Hydroponics for
better industrial production. In plastic molding industry, it
improves quality of molded products and shorten period of injection
molding cycles, and maximizes productivity of plastic molding
manufacturing. The chilled water can be used in various industries,
depending on your request.
1.Water Chiller For Hydroponics specification what you should
confirm at first:
* Energy saving Water Chiller For Hydroponics
* Cooling capacity of chiller: 31kW, 26660kcal/h
* Copeland/Panasonic scroll compressor( with UL certificate)
* Voltage: 380V (optional: 220/415/440v/480v)
* Refrigerant: R407c/R410a/R22
* Chilled water flow: 5.31m3/h
* Cooling air flow: 12,000m3/h
2.What the Water Chiller For Hydroponics we provide?
1. Installed with import compressors, highly efficient shell
condenser and evaporator, excellent cooling, quiet and low
electricity consumption.
2. Microprocessor control, easy to operate.
3. Unique open reservior tank made of stainless steel, easy
cleaning and maintenance.
4. Pipe well-arranged to save energy.
5. Install precise electronic thermostat accurately maintains
temperature within 5-35 degree C.
6. Install current overload protector, high and low pressure
switch, electronic timer delay, fault display system.
7. Screen liquid crystal display of chill water outlet and inlet
with temperature setting.
8. Single, double and four compressors combination unit available.
9. Industrial design, elegant and ergonomic.
3.Parameter:
| Specification model | Unit | MG-12C(D) |
| Nominal cooling capacity | kcal/h | 26660 |
| Nominal cooling capacity | KW | 31 |
| Input power | KW | 12.53 |
| Set temp. range | 5ºC~35ºC |
| Power supply | 3PH-220/380/415/440V-50/60HZ |
| Refrigerant | Type of control | Thermostatic expansion valve |
| Compressor | Power(kw) | 10.8 |
| Condenser | Cooling air flow(m3/h) | 12000 |
| Evaporator | Type | Tank with coil |
| Chilled fluid flow(m3/h) | 5.31 |
| Volume(L) | 200 |
| Inlet and outlet pipe diameter | DN32 |
| Pump | Power(kw) | 0.75 |
| Lift(m) | 20 |
| Dimension | Length(mm) | 1560 |
| Wide(mm) | 850 |
| High(mm) | 1500 |
| Weight | kg | 500 |

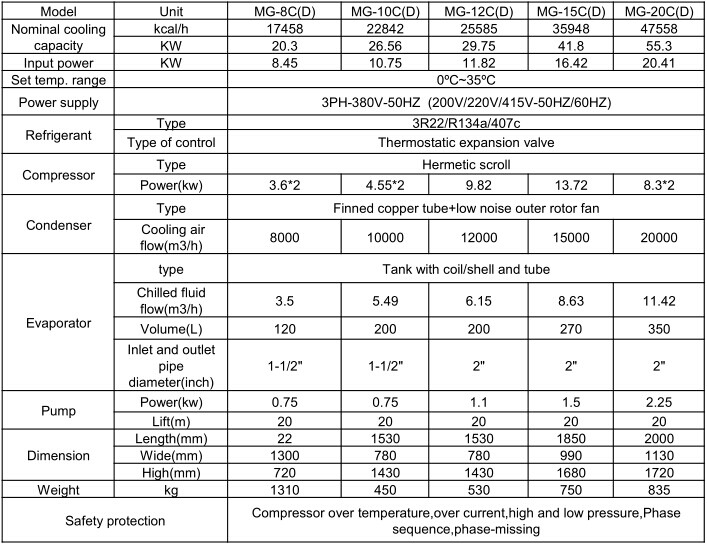

If your real working need is different with this model MG-12C(D)
specification, you can contact with us, then we will suggest you a
accurate model, or you also can check the peremeter as follows then
let me know which model will be better for you:
Export standard package
The Water Chiller For Hydroponics will use the bubble glue at
first, then the shockproof cotton, then the plastic film to protect
the machine. Then add the wooden packing. The wood packing is the
woodiness plywood + the solid wood.
Service of our most important work
1).Before sale Water Chiller For Hydroponics:
- Professional international water chiller service will be one to one
talk with you, to confirm all details of your cooling chiller
project.
- Then transfer all information to our engineer team, we will make
the solution based on all your need, make drawing, suggest model,
quote.
- Supply you a first offer to clients, after there check any concerns
we will glad to communicate again, then we make the finally offer
based on clients satisfy.
- Make the order.
2).After sale Water Chiller For Hydroponics:
- 24 hours online service, engineer one to one talk, all issues will
be feedback within 24 hours.
- Oversea engineer team, we can come to user site make technical
support and install.
- 14 Months warranty, all components will be free within warranty,
and with factory cost if out of warranty in the machine's whole
life.
