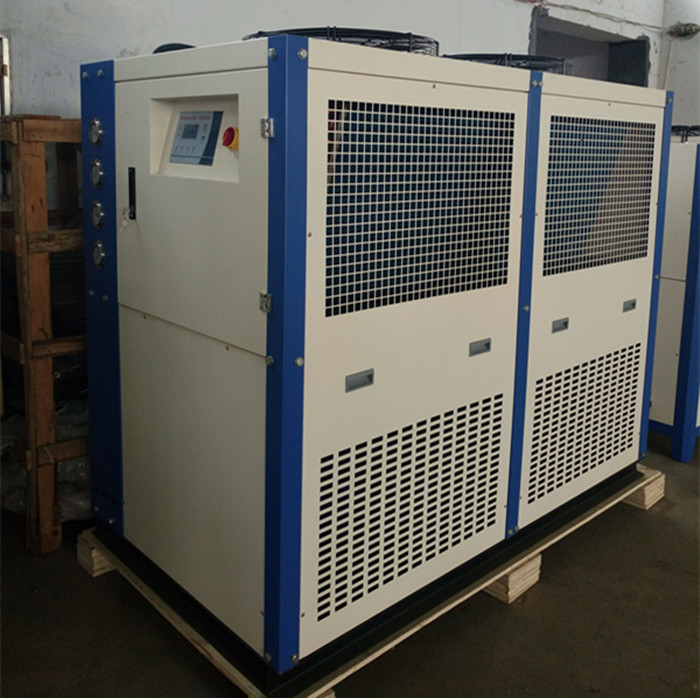

Injection Extruder Auxiliary Equipment Chilled Water Chiller

• Normally 20hp 15tr Auxiliary Equipment Chiller , widely used for plastic injection, extruding machine.
• Outlet temperature range: +5~+35 degree C
• Water flow: 9.48m3/h
• Water tank: 350L
• Pump power: 1.5kw
• Different cooling capacity customized.
• OEM service.

Technical Data:

- Auxiliary Equipment Chiller -

-Construction of Auxiliary Equipment Chiller -

1.Compressor

Refrigeration compressor Brand: Copeland/Panasonic/Danfoss Power supply:3phase, 220v/380/415/440v/50, 60hz Refrigerant: R407c, R22, R410a

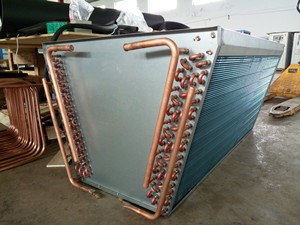

2. Condenser

Air cooling condensing unit Adopt V type To incerase the condenser heat exchanger area Hhigh efficiency

3. Evaporator type

Tank with coil type And for the copper thickness, we adopt the 1mm but almost other supplier just use 0.6mm, you know the thickness of copper will influence the working life of chiller. If the 15 ton chiller user side is a sealed circulate water system, we suggest you choose this type, so that can ensure the water pressure balance.

Shell and tube type If user site is a open type circulate water system, or distributor can not sure user site with which type, we suggest you choose this evaporator.

4. Controller

Mirco-computer control system Controller function--- we adopt microcomputer control system from PUNP brand, the Top 1 controller supplier in our line. Remote control: we will reserve a terminal in advance, if need this function then connect a switch and alarm , so that you can control the chiller stop, running, and alarm if any running problem of chiller at office.

- Auxiliary Equipment Chiller widely used in industries-

Acid cooling, bakeries, beverage, blow molding, breweries, cement cooling, chemical process, concrete cooling, dairy milk, extrusion molding, fermentating, HVAC, injection molding, laminating, molding, oil cooling pharmaceutical, printing, poultry, plastics, swimming pool, etc.

-Packing&shipping-

The air cooled chiller will use the bubble glue at first, then the shockproof cotton, then the plastic film to protect the machine. Then add the wooden packing. The wood packing is the woodiness plywood + the solid wood.

Jinan Mgreenbelt Industry is a leading specialized manufacturer of industrial water chiller, established in 2003, our factory is located in Jinan city, covering a total area of 34,000 square meters.

Our mission is to provide customers the best products and services through our wide range of equipment, parts, and services. Our goal is to be a one-stop-shop for your water system needs. To deliver on that promise we only carry the highest quality products and services. We also have knowledgeable application engineering on hand to answer any questions or recommend solutions for your process cooling requirements.

The product series include:

Any customize accept, a cooling ad refrigeration solution can br provided from us.
